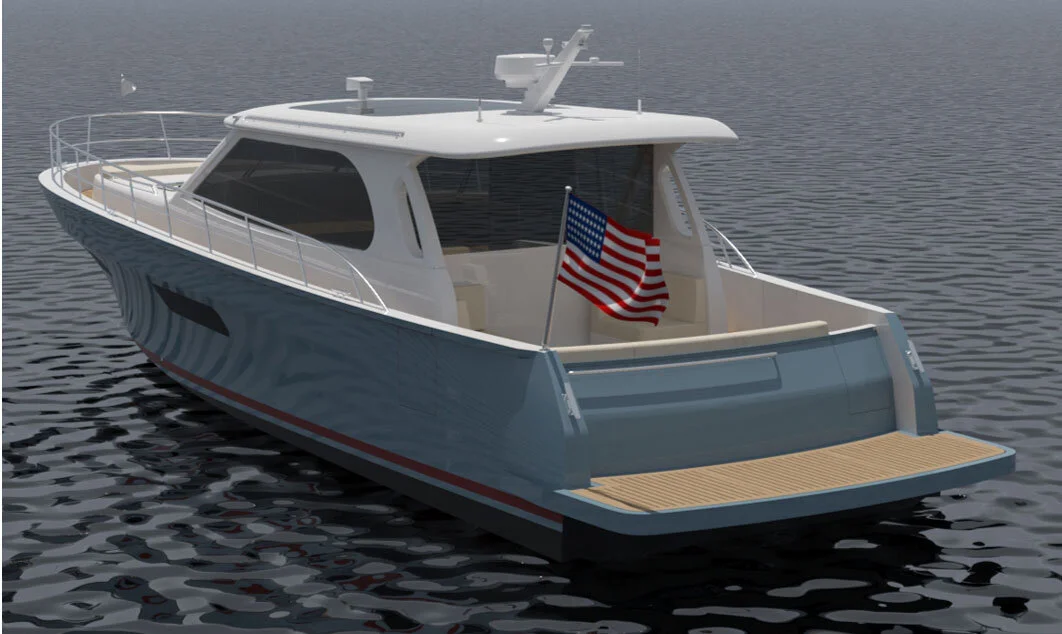

SSY46
The Sorensen° Signature Yacht SSY46 comes with twin Volvo Penta IPS 650s standard, with outboard and shaft power available.
We offer a well-equipped base boat, including a gyro stabilizer, joystick maneuvering and 600 gallon fuel capacity for extra range. The SSY46 can also be extensively outfitted with every amenity, from a central vacuum and washer-dryer to a flying bridge and H-P hydraulic swimplatform.
DESIGN HIGHLIGHTS
° Ray Hunt Deep Vee Hull
° ISO Certified Category “A” Ocean Rating
° Infused Modified Epoxy, E-glass, Carbon Fiber Composite Cored Construction
° Bow Cockpit
° Recessed port/stbd walkaways to bow with bulwarks and 32” railings
° Helm Door to Weather
° 360-degree helm sightlines with patent-pending windshield design
° Intelligent-Design Helm Ergonomics
° Port and Starboard Cockpit Hull Side Doors
° Single-level aft cockpit-salon deck
° Roomy Engine Room with hinged deck opening and day hatch access
° Choice of Cabin Layouts with Office, Settee or 3rd Stateroom
° Galley Up or Down Options
° Choice of Interior Woodwork (Maple, Walnut or Cherry Standard, Teak optional)
SPECIFICATIONS
LENGTH OVERALL - 50’7” / 15.45m with Platform
HULL LENGTH - 46’6” / 14.20m
LENGTH ON DECK - 45’ / 13.72m
BEAM - 14’10” / 4.3m
DRAFT - 3’ 2” / 0.96m
FUEL - 600 USG / 2,271L
WATER - 150 USG / 567L
HOLDING - 60 USG / 227L
DISPL. (1/2 LOAD) - 34,000 lbs. / 15,420 kgs.
DEADRISE (AFT) - 20 Degrees
NAVAL ARCHITECT - Ray Hunt Design
The SY46 is designed to ABYC, USCG, & CE Category “A” Ocean standards
STANDARD EQUIPMENT
PROPULSION
Twin Volvo-Penta 480hp D6-IPS650
Est. 32 knots top speed
VESSEL CONTROL
360-degree horizon helm sightlines
Auto/aircraft-style helm ergonomics
Volvo/Garmin glass cockpit
Volvo joystick docking, joystick driving, intelligent autopilot
Volvo cockpit docking station
DPS dynamic positioning, rudder angle indicator
Volvo interceptor system 750
Helm console adjusts to suit operator height & position
Quick MC 2-13AC gyro stabilizer and control panel
PILOTING
ACR RCL100 searchlight
Ritchie Navigation compass
Garmin VHF215 AIS radio
Hella Marine LED navigation lights
Kahlenberg 380 automatic horn with DC compressor
ROCA/Exalto pantograph windshield wipers w/ washers
